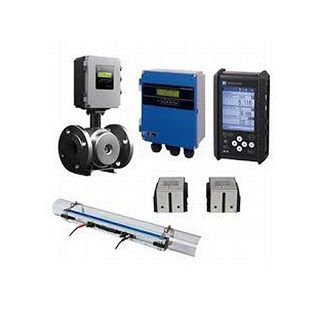

Flow

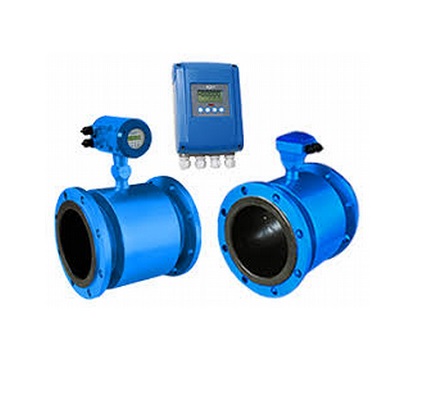

Electromagnetic - Inline / Battery Operated

• Size : DN3-DN3000mm (1/8”~120”)
• Accuracy : ±0.5% of reading, velocity > 0.3 m/s
• Velocity : 0.1-15 m/s
• Signal Output : 4~20 mA, Pulse, HART
• Power Supply : AC85~250V, DC20V~36V

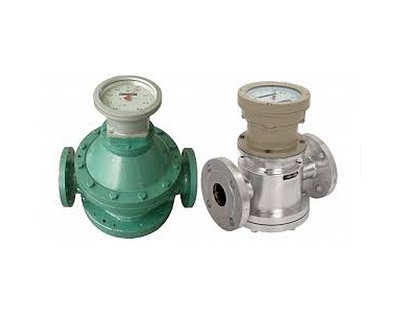

Positive Displacement

• Sizes : M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80®
• Max Capacity : 800 GPM / 3,028 LPM (180 M³/hr)
• Max Pressure : 150 PSI / 10.3 Bar / 1034 kPa
• Max Viscosity : 30-1,500,000 SSU or 1 cP to 325,000 cP
• Temperature Range : -40°F to 160°F

Ultrasonic Clamp On Type

• Linearity : 0.5%
• Repeatability : 0.2%
• Accuracy : ±1% of reading at rates > 0.2 mps
• Response Time : 0-999 seconds, user configurable
• Velocity : ±32 m/s
• Pipe Size : 20mm-6000mm

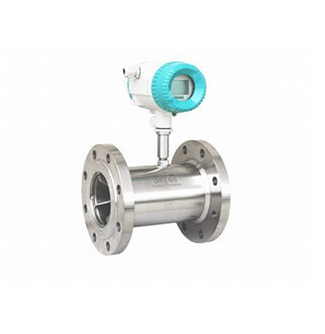

Turbine

• Size & Process Connection : DN4, 6, 10, 15, 20, 25, 32, 40 (Thread connection) & DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200 (Flange connection)
• Accuracy / Range Ratio : ±0.5%R; 1:10; 1:15; 1:20
• Sensor Material : SS304, SS316(L)
• Output : Pulse, 4-20mA, HART
• Power Supply :
  A: +24VDC for 4-20mA, Pulse, RS485 output
  B: 3.6V Lithium battery (Operating voltage: 2.0V ~ 3.0V)

Variable Area

• Fluids Measured : Steam, Gases, and Liquids
• Flow Range : 10:1 turndown
• Accuracy : ±1.0% & ±1.5% & ±2.5%
• Max. Process Temperature : 150℃ - 350℃
• Nominal Operating Pressure : DN15~DN50: 4.0 Mpa, DN65~DN200: 1.6 Mpa
• Max. Pressure Rating : DN15: 32 Mpa; DN25: 25 Mpa; DN50: 20 Mpa; DN80: 10 Mpa; DN100: 6.4 Mpa; DN125~DN150: 4.0 Mpa

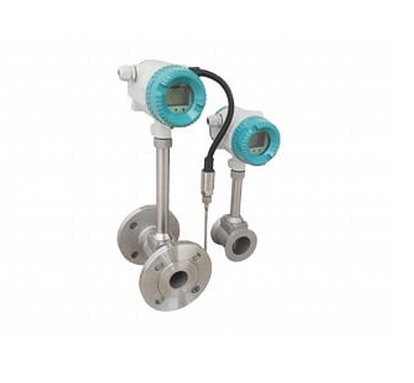

Vortex

• Fluids Measured : Steam, Gases, and Liquids
• Flow Range : 30:1 turndown
• Liquids : 1.0 ft/s (0.3 m/s) velocity min. — 30 ft/s (9.14 m/s) velocity max
• Digital Communications : HART, Modbus, Profibus DP, Foundation Fieldbus, BACnet, USB, RS-232
• Hazardous Area Approvals : CE, cFMus, ATEX, PED, IECEx

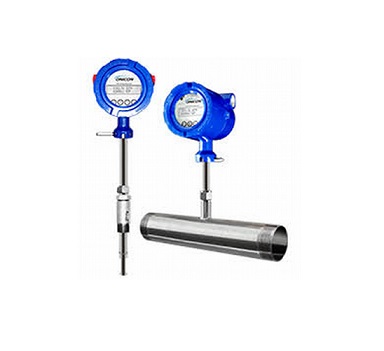

Thermal Mass

• Medium : Gas (except acetylene)
• Pipe Range : DN100-DN4000, DN10-DN2000
• Velocity : 0.1 ~ 120 Nm/s
• Accuracy : ±1% , ±2.5%
• Working Temperature : -40℃ ~ +220℃
• Working Pressure : ≤ 2.5 MPa, ≤ 4.0 MPa

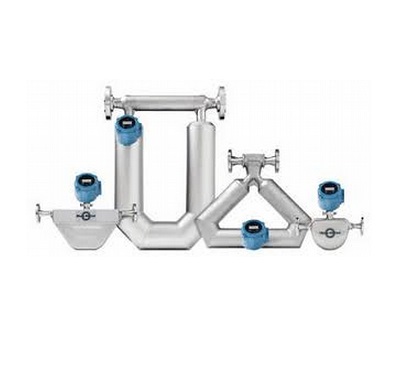

Coroliss Mass

• Max. Flow Rate : 200 kg/min
• Wetted Parts : Stainless Steel 316L
• Sensor Housing : Stainless Steel 304
• Fluid Temperature : -200 ~ 200°C
• Temp. Accuracy : ±1°C
• Operating Voltage : AC85~265V, DC24V

Variable Area

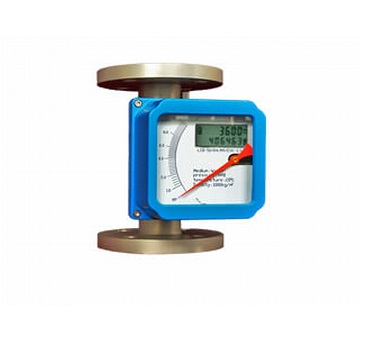

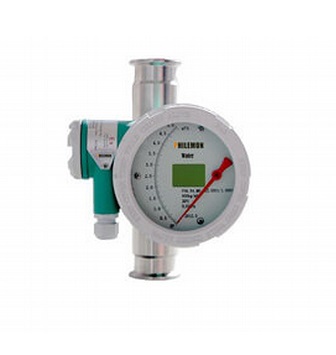

Metal Tube

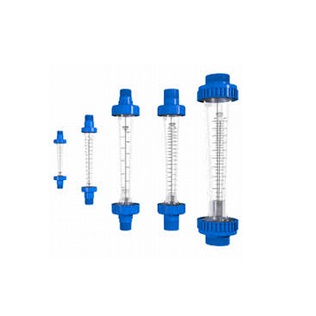

Threaded/union Type Plastic

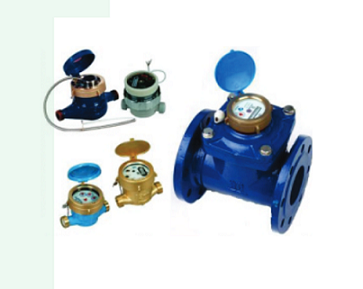

Mechanical water meters

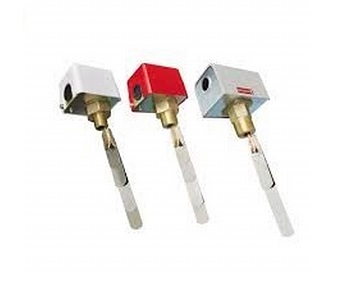

Vane Type

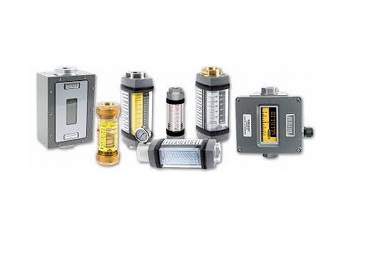

Inline Type

Paddle Wheel

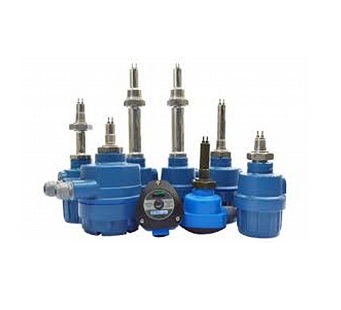

Thermal Dispersion Kits
