Level

Magnetic, Reflex, Transparent, Tubular, Float & board Level Gauges, side & top Mounted, Cable Float, vibration tuning fork type Level switches and ultrasonic, Radar, GWR, Magnetostrictive Level Transmitters

Gauges

Product

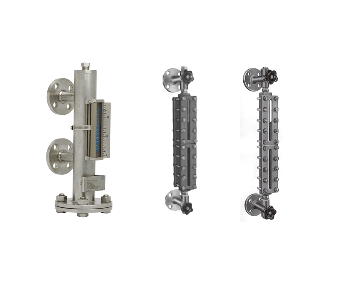

Level Indicators

  • Type : Tubular, Reflex, Transparent, Magnetic By-pass, Float & Board
  • Connection : BSPP, NPT, Flanged etc.
  • Material : PP, SS316, Carbon Steel etc.

Switches

Product

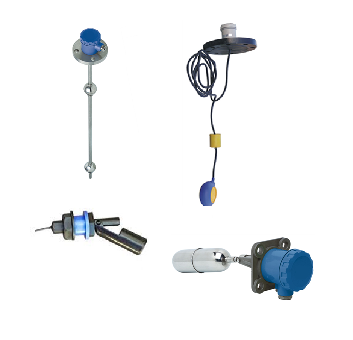

Magnetic Level Switch

  • Type : Miniature, Cable Float, Side Mounted, Top Mounted
  • Connection : BSPP, NPT, Flanged etc.
  • Material : PP, SS316 etc.

Transmitters

Product

Displacer Level Transmitters

  • Model : Fisher, Rosemount - Emersons Liquid level, Specific Gravity or Interface Level
  • Application : Liquide Level, Specific Gravity or Interface Level
  • Displacer Length : 100 mm to 4.5 Meter
  • Min. Differential Specific Gravity : 0.30 to 1.2 & 0.5
  • Accuracy : +/-0.5% of full scale (better on request)
  • Hazardous Area : ATEX, UL
  • Material Of Construction : Compatible material available for different process media. Can replace Fisher/Masoneilin/Yamatake/Motoyama/Parcol/Eckard Transmitter, one to one…
Product

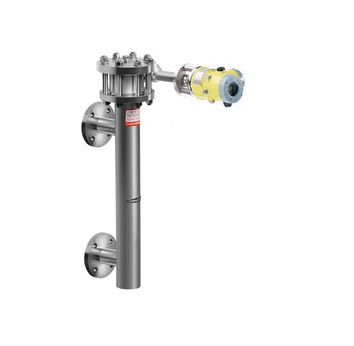

Magnetostrictive Float Type Level Gauge With Transmitter

  • Measuring Range (mm) : 500-3500
  • Process Pressure : Max. 60 bar
  • Switch Rating : 250V AV12 — 2.5 A / 220V DC13 — 0.3 A
  • Protection Enclosure : IP65
  • Features (Optional) : Switches/Transmitter, ATEX, FM, UL
  • Output : 4-20 mA / HART
  • Switch : SPDT, SPST, DPST
Product

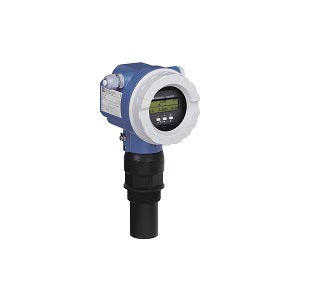

Ultrasonic Level Transmitter

  • Media : Liquid / Solid
  • Range : 0 to 25 Mtrs. for Liquid / 50 Mtrs. for Solid
  • Indicator : Digital Display
  • Working Temperature : -40 to 70° C
  • Working Pressure : -0.02 to 0.1 MPa
  • Output : 4 to 20 mA / HART
  • Power Supply : 24 V DC ± 10%
  • Ex. Proof : Ex ia IIB T6
  • Protection Grade : IP66
Product

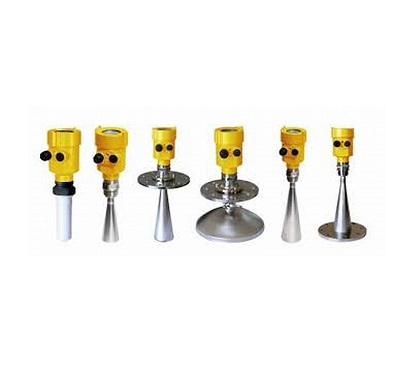

Non-contact Radar Level Transmitter

  • Suitable for Medium : Liquid
  • Measuring Range : 30 meters
  • Temperature : -40℃ ~ 250℃
  • Process Pressure : -0.1 ~ 0.3 MPa
  • Signal Output : 4 ~ 20 mA / HART
Product

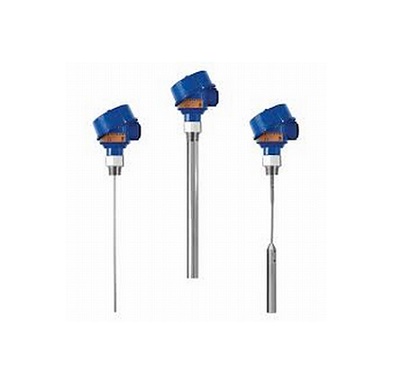

Guided Wave Radar Wired/Rigid Rod Level Transmitter

  • Measuring Range - Distance : 75 m
  • Working Temperature : -40 ... 200 °C
  • Process Pressure : -1 ... 40 bar
  • Accuracy : ± 2 mm
