Pressure

GAUGES, SWITCHES, TRANSMITTERS, all Allied accessories like Gauge cock, syphons, snubber, cooling towers, flushing rings and Diaphragm seals.

Gauges

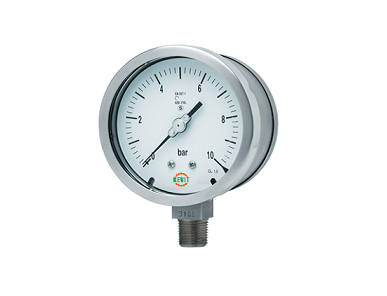

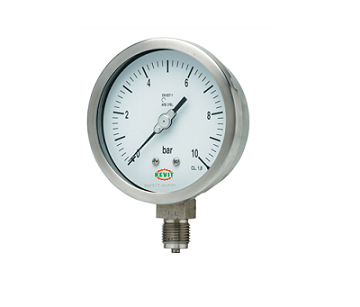

Dial Size : 50mm, 63mm, 80mm, 100mm, 125mm, 150mm & 250mm
Ranges : -1 to 0....0.6 to 2100 bar
Wetted Parts : SS 316L & Monel
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 0.5, CL 1.0 & CL 1.6
Dampening Liquid : Dry, Fillable & Filled
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

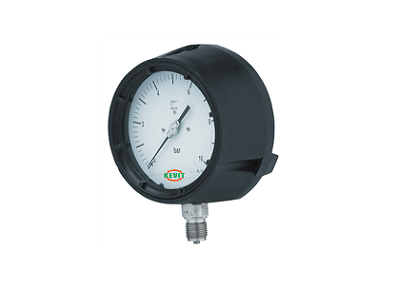

Dial Size : 63mm, 100mm & 150mm
Ranges : -1 to 0....0.6 to 2100 bar
Wetted Parts : SS 316L & Monel
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 0.5, CL 1.0 & CL 1.6
Dampening Liquid : Dry, Fillable & Filled
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

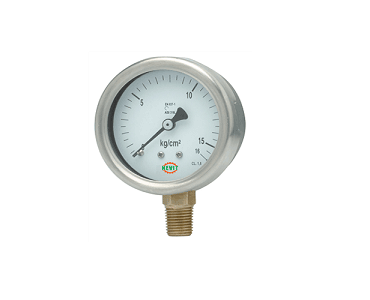

Dial Size : 40mm, 50mm, 63mm & 100mm
Ranges : -1 to 0....0.6 to 700 bar
Wetted Parts : Copper Alloy
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 1.6 & CL 2.5
Dampening Liquid : Dry, Fillable & Filled
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

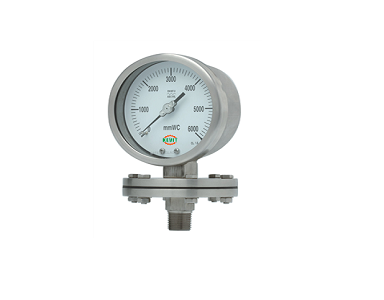

Dial Size : 100mm & 150mm
Ranges : 1bar to 16bar & 0....250mmWC
Wetted Parts : SS 316, Monel & Hastelloy 'C-276'
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 1.6
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

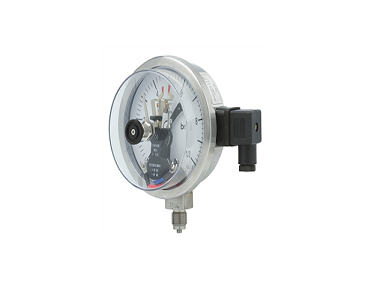

Dial Size : 100mm & 150mm
Ranges : -1 to 0....0.6 to 2100 bar
Wetted Parts : SS 316L & Monel
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 0.5, CL 1.0 & CL 1.6
Dampening Liquid : Dry, Fillable & Filled
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards
Contact Type : Magnetic Snap Action & ATEX Inductive Contact
No. of Contacts : Single, Double & Triple Contacts for ON / OFF action

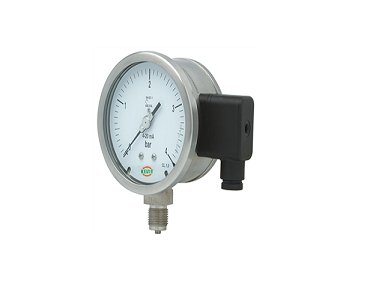

Dial Size : 100mm & 150mm
Ranges : -1 to 0....0.6 to 600 bar
Wetted Parts : SS 316L & Monel
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 0.5 (Transmitter)
Transmitter : 2 Wire, 24V DC
Dampening Liquid : Dry, Fillable & Filled
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

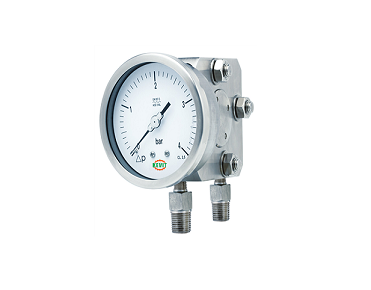

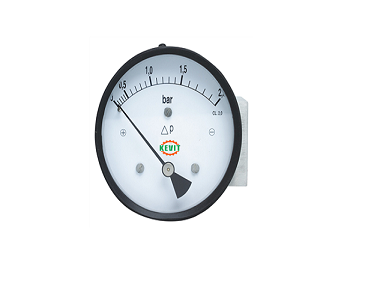

Type : Single & Double Diaphragm
Dial Size : 100mm & 150mm
Ranges : -6000mmWC to 0 / 250mmWC to 16bar
Static Pressure : 60 bar (Single Diaphragm) & 100bar (Double Diaphragm)
Wetted Parts : SS 316, Monel & Hastelloy 'C-276'
Mounting : Bottom, Back and with mounting bracket accessories
Accuracy : CL 1.6 & CL 2.5
Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards
